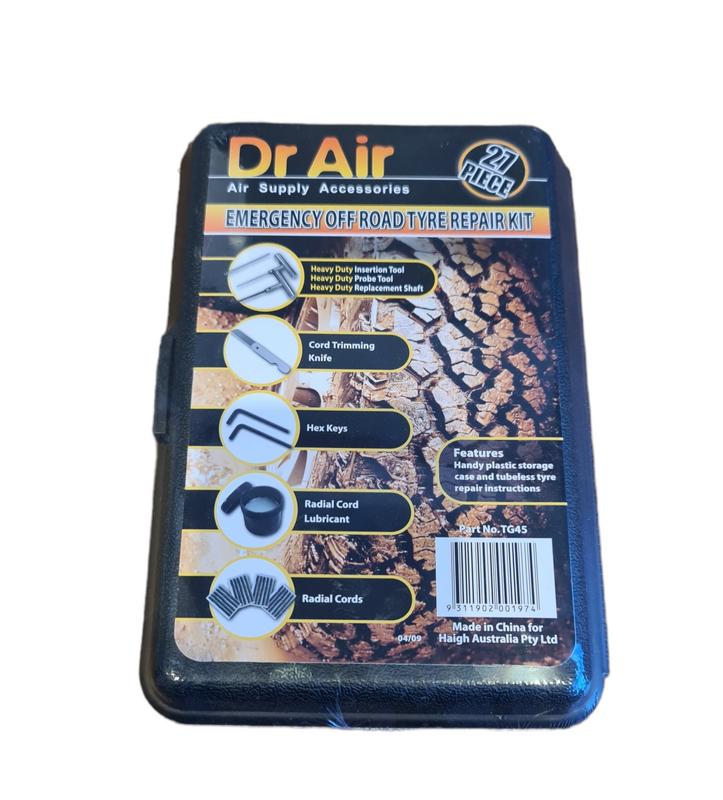

Dr Air 4WD 4x4 Tubeless Tyre Repair Kit 27 Piece Plugs Emergency Pack TG45

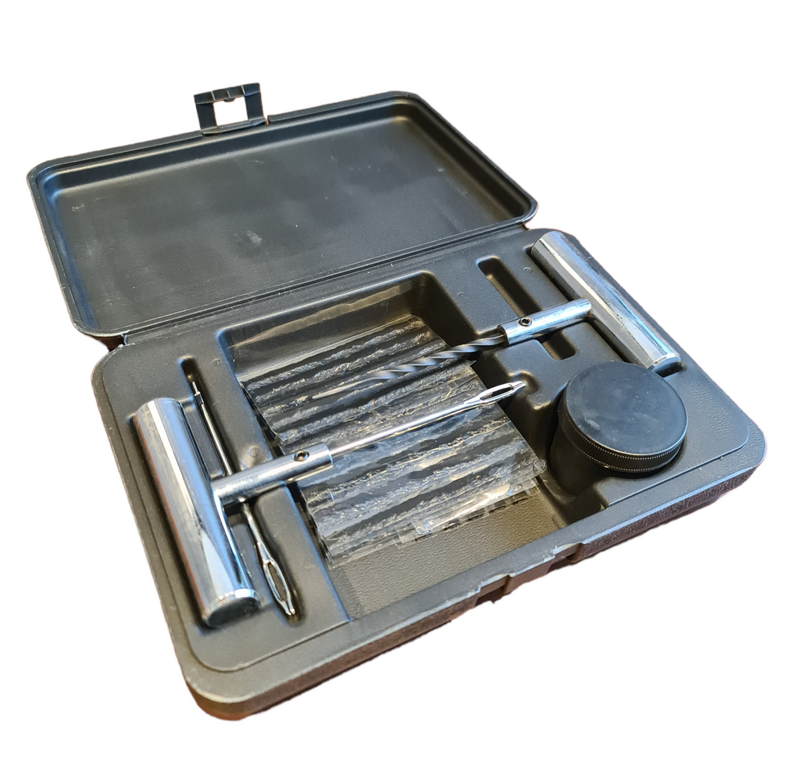

This universal tubeless tyre repair kit is especially designed for 4x4 use. This comprehensive emergency kit is designed to get you back on the road faster. Features a handy plastic storage case as well as easy to follow repair instructions

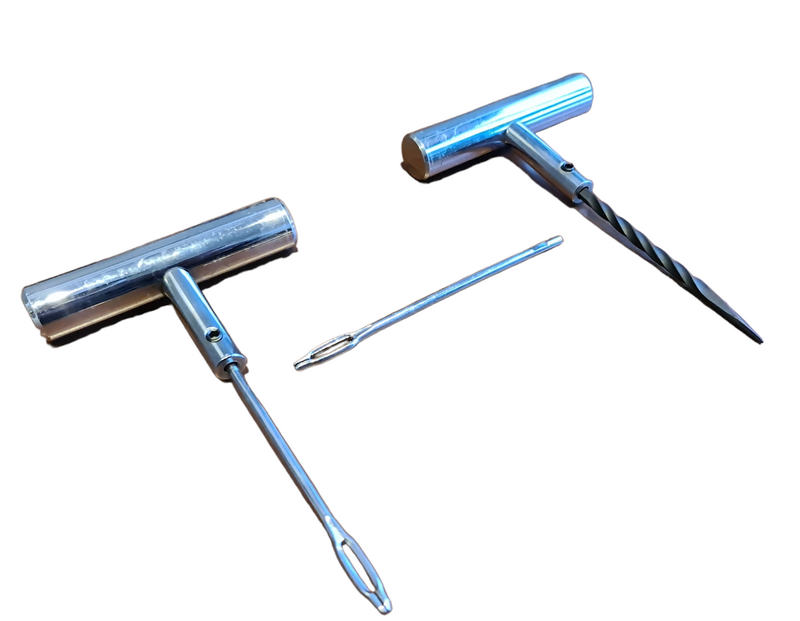

• Reamer Tool x 1
• Insertion Tool x 1
• Replacement shaft for Insertion Tool x1

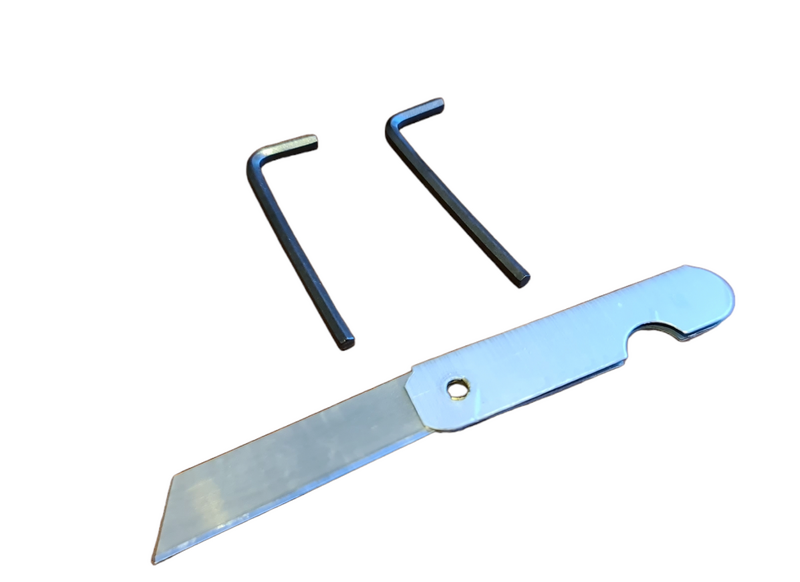

• Trimming Knife x1
• Hex Key x2

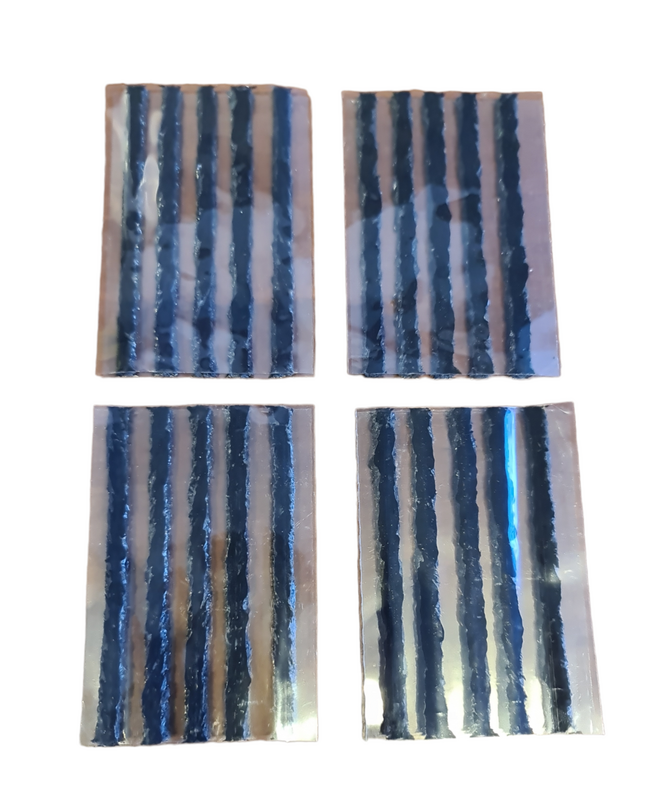

• 100mm Radial Cord x20

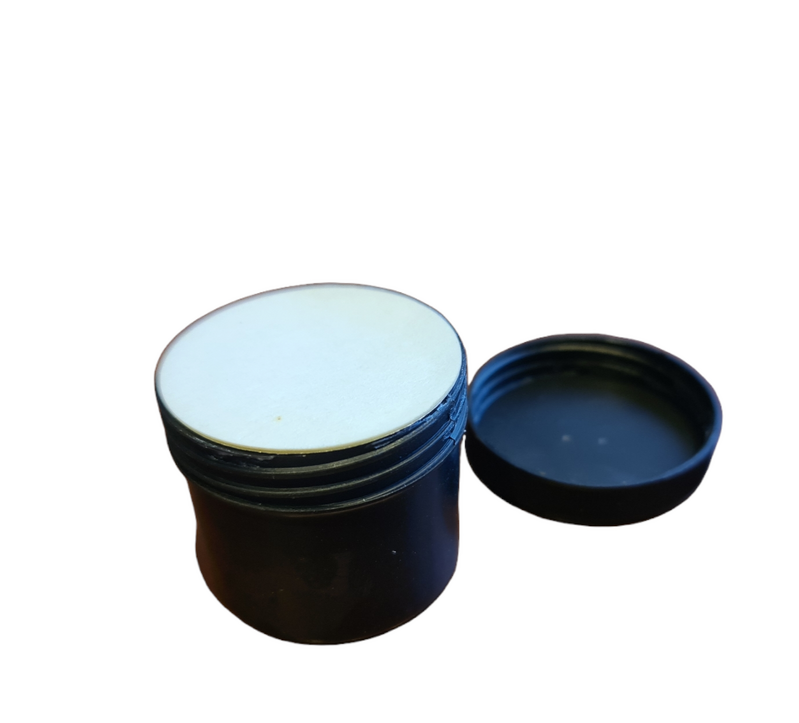

• Radial Cord Lubricant x1
• 1 x storage case.

This method of repair should only be used in emergency tyre repair situations.

The tyre should be inspected and properly repaired by a qualified tyre fitter at the earliest opportunity.

OPERATING INSTRUCTIONS

IF THE TYRE WALLS ARE PUNCTURED THEY MUST NOT BE REPAIRED USING THIS METHOD.

• The wheel should be removed from the vehicle following the manufacturer's recommended procedure. Inspect the tyre & remove the object that has caused the puncture, use sponge & soapy water to help identify the position.
• A reamer tool has been included to clean & prepare the punctured hole.
• Use a generous amount of radial cord lubricant provided & apply it to the reamer tool.
• Insert the reamer tool into the punctured hole, move it up & down in a twisting motion to make the hole bigger.
• Peel out a single radial cord, insert it into the needle end of the insertion tool.
• Always Use a whole radial cord. To make sure your repair works, place the radial cord halfway through the eye & get into position to insert.
• Push down firmly on the insertion tool, making sure you leave a portion of the radial cord exposed.
• Withdraw the insertion tool with a single motion. The tip of the insertion tool has been designed to separate and release the radial cord as it is withdrawn.
• Trim off the excess radial cord with the knife provided.
• Inflate the tyre to the recommended pressure.
• Check the repaired tyre using soapy water to ensure the hole has been sealed prior to remounting the wheel.
