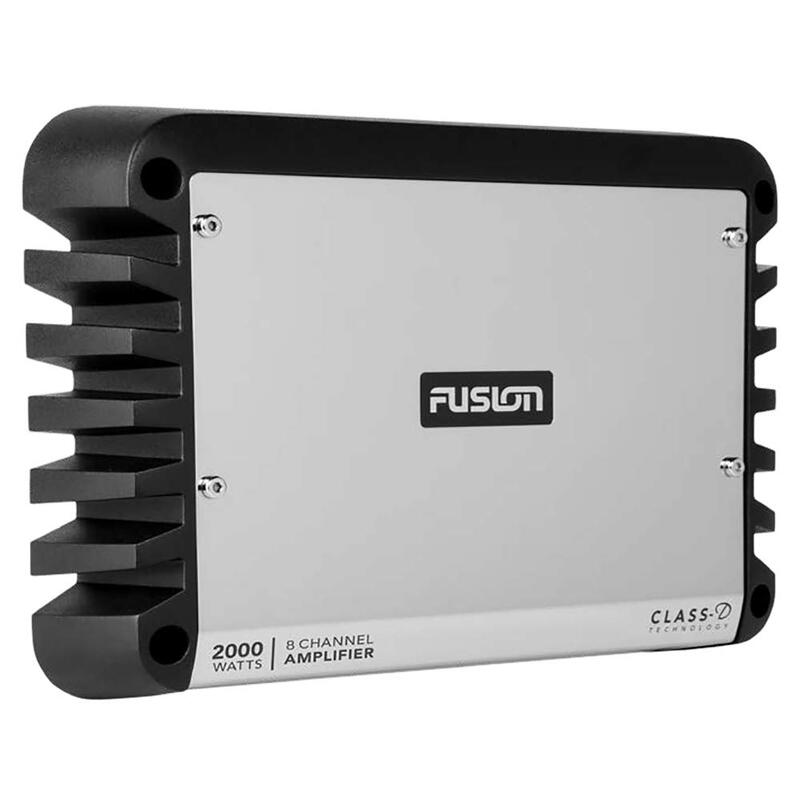

Fusion Marine 8 Channel Amplifier 2000W Peak SG-DA8200

• Frequency Response 10 Hz to 40 kHz (-3 dB @ 4 Ohm rated power)
• Peak Power Output 2000 W
• Rated Power Output (4 Ohm) 100 W rms x 8 @ 14.4 V input < 1% THD+N (EIA/CEA-490A)
• Rated Power Output (2 Ohm) 140 W rms x 8 @ 14.4 V input < 1% THD+N (EIA/CEA-490A)
• Rated Power Output (4 Ohm Bridged) 280 W rms x 4 @ 14.4 V input < 1% THD+N (EIA/CEA-490A)
• Input Sensitivity 0.3 V to 8 V rms, user adjustable
• Input Impedance 7k Ohm nominal
• High-Pass/Low-Pass Full Range Filter Yes, user selectable
• Filter Cross-Over Frequency 32 Hz to 320 Hz, user adjustable
• Filter Cross-Over Slope 12 db/octave
• Bass-Boost 0 to 9 dB, user adjustable (zone 2/4 only)
• Operating Voltage 10.8 V to 16 V dc
• Remote Switch-On Yes - 6 V threshold
• Current Consumption (Standby) < 1 mA @ 14.4 V input
• Current Consumption (Idle) < 2.5 A @ 14.4 V input
• Current Consumption (Max) 100 A @ 14.4 V input
• Fuse Rating 4 x 40 A ATC Blade-Type (SAE J1171 Compliant)
• Protection Circuits Reverse-Voltage, Input Under/Over Voltage, Over-Temperature, Output Short-Circuit
• Operating Temperature Range 0 to 50°C (32 to 122°F)
• Ingress Protection Rating Dry area installation only
• Dimensions 420 mm (L) x 210 mm (W) x 57 mm (H) or 16-9/16" (L) x 8-1/4" (W) x 2-1/4" (H)
• Weight 5.20 kg with cover or 11.5 lb with cover
• SG-DA8200 Signature Series 2000W - 8 Channel Amp
• Bring your music to life with our range of powerful Signature Series amplifiers, designed to enhance any serious on-board audio system.

CLASS-D AMPLIFIER TECHNOLOGY

The highly efficient Class-D amplifier design ensures low current draw from the battery whilst delivering increased power to the connected speakers and/or subwoofers. Taking your audio entertainment experience to a whole new level, the Signature Series amplifiers are built for high performance.

RIGID ALUMINIUM ALLOY HEAT SINK

Molded to form a singular die-cast chassis, the fin layout is calculated with precision to increase the surface area of the heat sink. This creates greater dissipation of heat and unquestionable efficiency without compromising the sleek form factor.

MARINE READY DESIGN

The Signature Series amplifiers are designed specifically for marine use, with conformal coated PCBs to provide extra protection from the marine elements. This extends the products' lives and ensures that the amplifiers will continue to perform season after season on board.

STAINLESS MIRROR FINISH

The stunning stainless steel cover conceals all cable connections and tuning controls for a discreet yet undeniably attractive finish that will complement any installation. The stainless steel design also ensures that your Signature Series amplifier will resist rust and corrosion, extending the product life while maintaining a clean, tidy appearance.

TRUE-MARINE™ PHILOSOPHY

Fusion's True-Marine design philosophy stems from our experience confronting the harsh marine environment. By designing and engineering from the ground up specifically for real world boating applications, our customers are assured that the equipment they fit into their vessel will deliver quality entertainment season after season.
