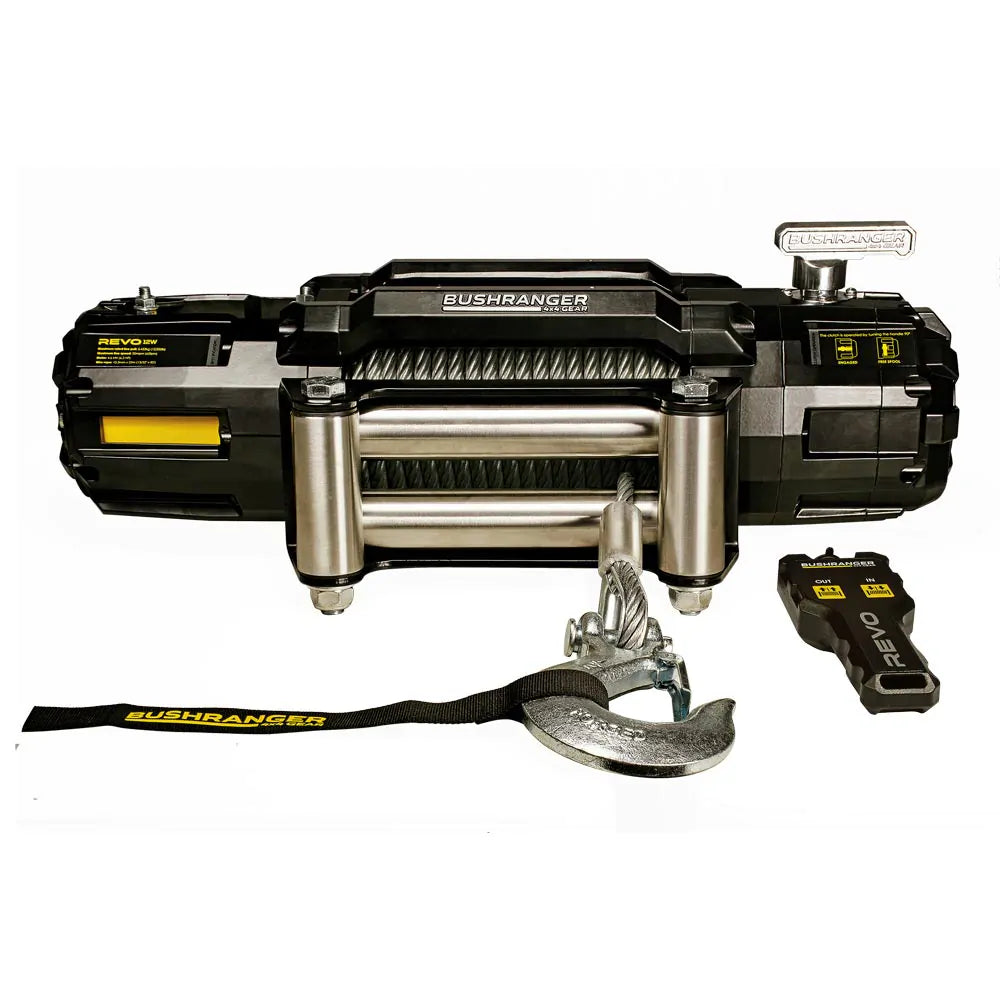

REVO Winch 12,000LB Wire RWR120W
REVO Winch 12,000LB Wire RWR120W
Couldn't load pickup availability
REVO winches are designed to be strong, versatile, and ready for anything. Consistently developing and improving our products, Bushranger REVO is built with long term reliability in mind. With a new and improved powder coating; rigorously tested in Australian facilities and real-world conditions. REVO is ready to be pushed to the extreme.
Designed to tackle any challenge, the REVO 10w is packed with tough and reliable features.
-
- 10.3mm steel cable paired with a ½” removable clevis hook.
- 4 Stage oversized, externally adjustable gearbox designed for maximum strength and versatility. With 16 clockable positions making for ease of fitment.
- Gearbox mounted braking system 100% load holding proportional friction braking system located inside the gearbox, away from the drum – eliminating heat transfer to rope.
- In-line roller fairlead made from a tough, rust proof 304 stainless steel, built for maximum durability
- Series wound, 12V, 6.2HP motor made with high grade materials. Resulting in low current draw and longer life at extreme loads.
- Spring loaded clutch making for an easy to use no-lift style clutch mechanism
- Versatile Control Box with multiple mounting orientations to suit every setup. Supplied with an additional mounting bracket for hassle free installation
- Wired hand controller fully sealed, IP67 rated, with 5m of cable for plenty of reach
- Zero drag braking system allowing for the winch to be powered out under no load without heat build-up, making unspooling a breeze
-
- Part Number: RWR120W
- Dimensions: 602mm (L) x 165mm (W) x 216mm (H) (excludes control box)
- Rated Line Pull (single): 12,000lbs (5,443kg)
- Motor: Series wound, 12V, 6.2HP (4.6kw)
- Remote Control: Hand controller (Wired, 5m lead)
- Electrical: Contactor IP67 500A
- Gear Train: 4 stage gear driven
- Gear Ratio: 171:1
- Clutch (freespooling): Rotating Ring Gear
- Brake: Gearbox Mounted, Proportional Friction Brake System
- Drum: Diameter/Length 63.5mm x 244mm
- Mounting Bolt Pattern: 254mm x 114mm
- Rope: 10.3mm x 25m Wire Rope
- Fairlead: Stainless Steel Roller Fairlead
- Recommend Battery: 650CCA minimum
- Battery Leads: 1850mm
- Finish: Black Powder Coat
- Mechanical Warranty: Limited Lifetime
- Electrical Warranty: 7 years
- Waterproof Rating: IP67
- Certification: CE, 1P67
- Winch Weight: 48kg
